Ambi-Verge universal dry fix verge system for profiled roof tiles

The universal dry fix verge system for profiled roof tiles. A robust, attractive and weather-resistant verge system alternative to wet mortar bedding.

Independently tested and compliant with BS8612 and helps to meet BS5534 code of practice for slating and tiling.

Use:

  • Large format and interlocking concrete profiled tiles
  • Most pitched roof types from 15-55°
  • Verges with or without bargeboards
  • New build and refurbishment projects

Product Information

Roofline Ambi-Verge universal dry fix verge system for profiled roof tiles

DescriptionPack quantityGrey product codeBrown product codeBlack product codeTerracotta product code
Ambi-Verge universal dry fix verge2099141991429914399144
Universal dry fix angled ridge end cap199109991089910799110
Universal dry fix half round ridge end cap199113991129913699114

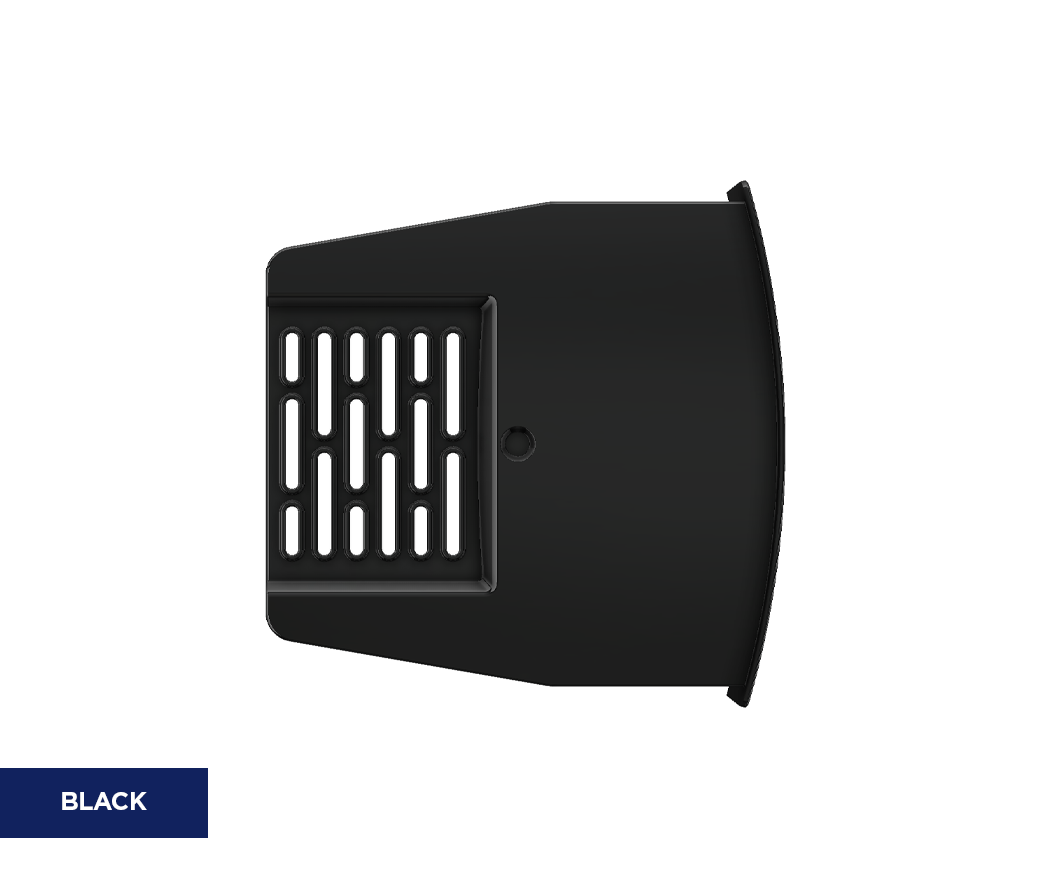

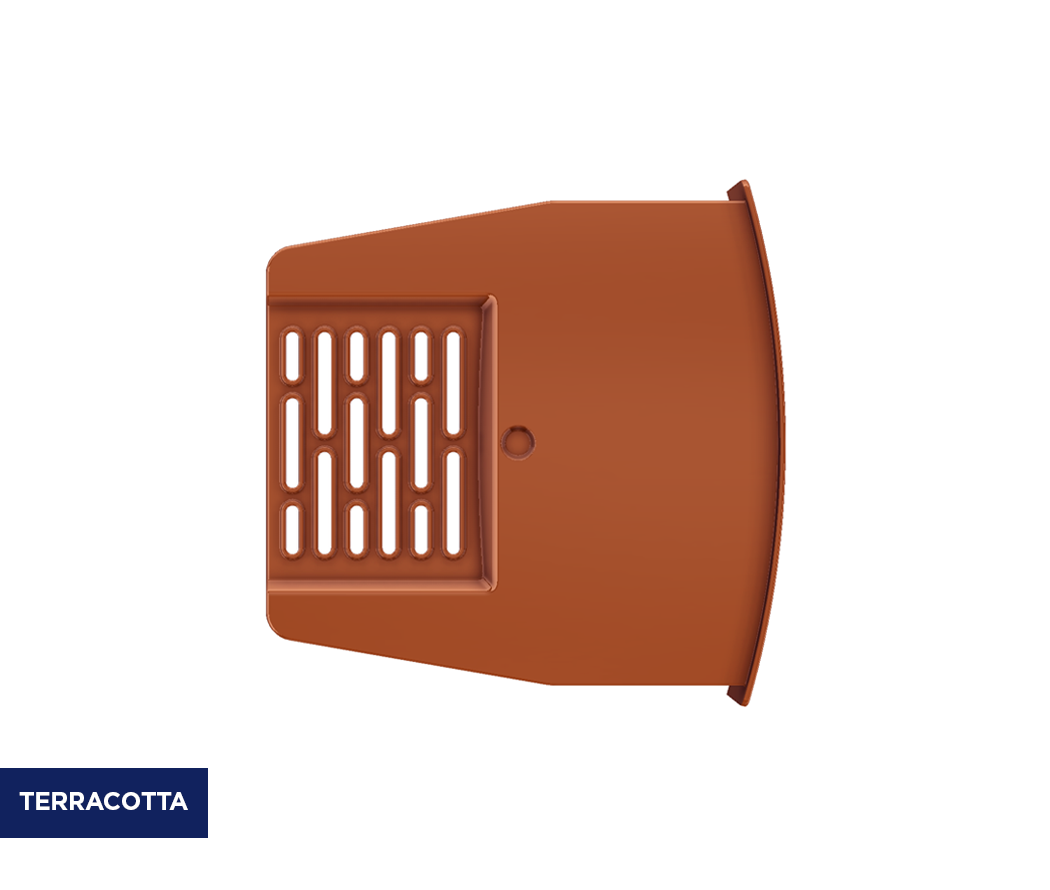

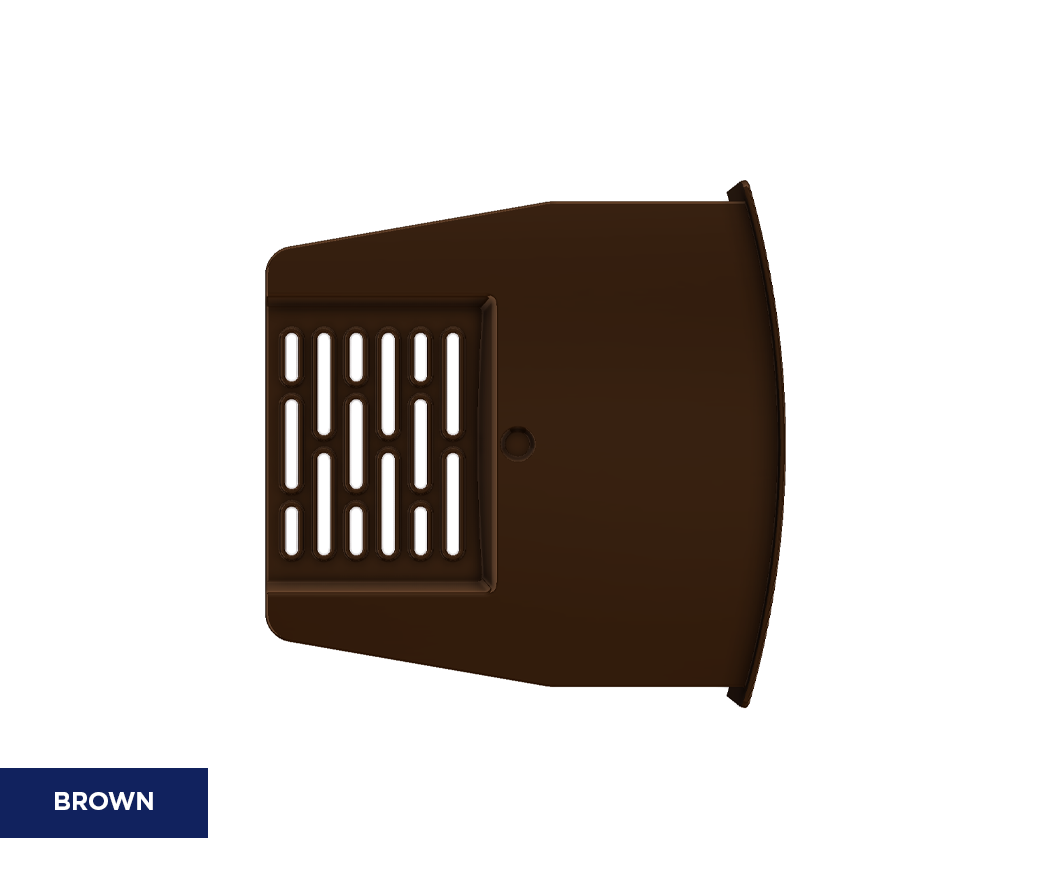

Ambi-Verge eaves starter199153991559915499156
Dry verge profiled tile end grain batten bracket (optional)2099124991249912499124

  • Universal installation – LH & RH sides are interchangeable
  • Long lasting, reliable and virtually maintenance free
  • Protects against wind uplift, water ingress and general deterioration
  • Easy, fast, clean and generally safer mortar free installation
  • Allows virtually all weather installation
  • Strong but supple for easy flexing and sliding along the tiles
  • Secure fit around the tile reassurance
  • Maintains consistently smart appearance
  • Not impacted by building settlement
  • Meets mechanical fix legislation requirements
  • The system also offers a unique steel fixing bracket option that presents flexible fixing points for use with alternative size counter battens or straight onto tile batten ends
  • The bracket avoids the reliance of end grain fixing, which can cause splitting and consequential damp penetration issues
  • Helping to meet BS 5534 Code of practice for slating and tiling
  • Complies with all other relevant regulations and standards
  • Manufactured to BS EN ISO 9001 and BS EN ISO 14001
  • Independently tested and complies with BS8612
  • UV protected and colour fast polypropylene. Galvanised steel batten end bracket (optional).
  • Available in grey, terracotta, brown, and black.
  • Universal verge unit
  • Eaves starter
  • Half round ridge (apex) end cap
  • Angled ridge (apex) end cap
  • End grain batten bracket (optional)
  • Select the relevant verge system colour for the project.
  • 1 verge piece is required for each roof tile in the sloping run.
  • Select the ridge shape for the apex of the system – angled or round.
  • Eaves starter must be installed at the beginning of each sloping run.
  • 1 optional end grain batten bracket is required for each verge piece installed in the sloping run.
