3m | 6m Integrated Dry Fix Ridge Kits

Convenient ‘one pack’ mechanical fix solution for roof ridge installations.

Uses:

  • Most types of slate, concrete or clay roof tiles
  • Round or angled ridge tiles
  • Most pitched roof types from 15-55°
  • New build and retro-fit projects

BIM Objects

We have partnered with the BIMstore to help provide you with the highest standard of BIM content around.

Browse BIM Information

Product Information

Product Codes

DescriptionColourProduct Code

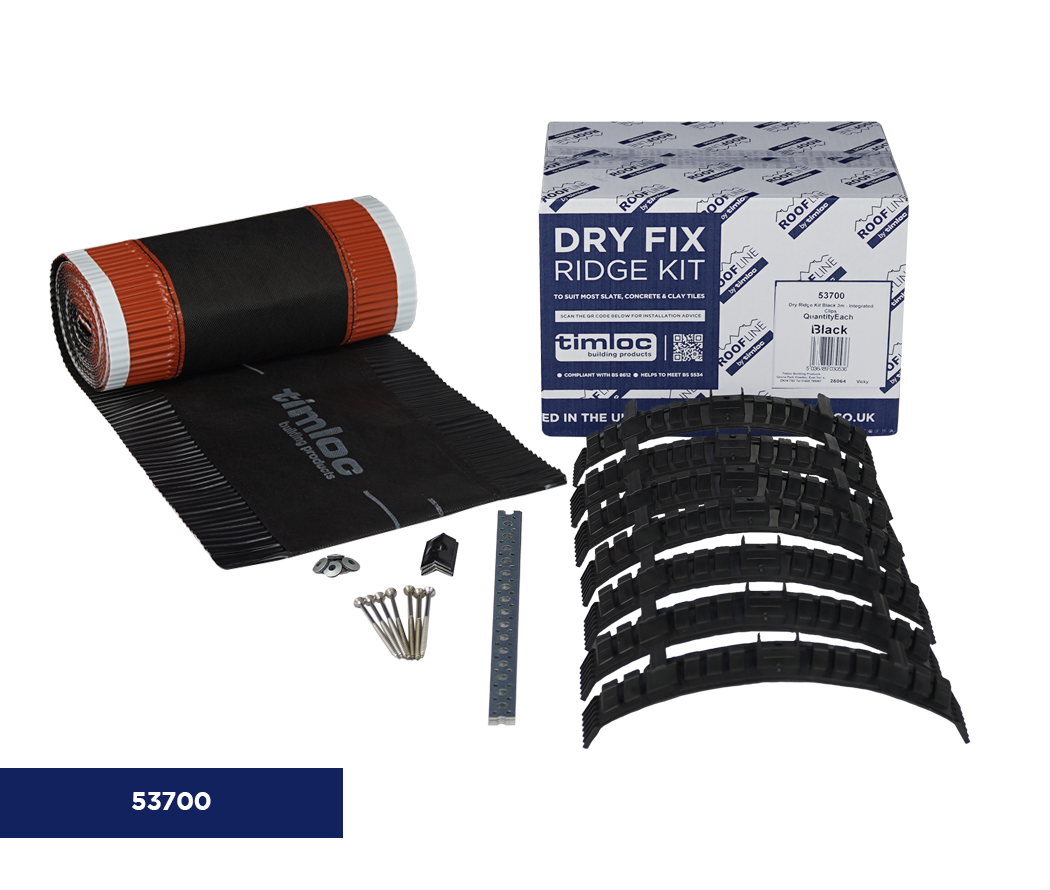

3m integrated dry fix ridge kitBlack53700

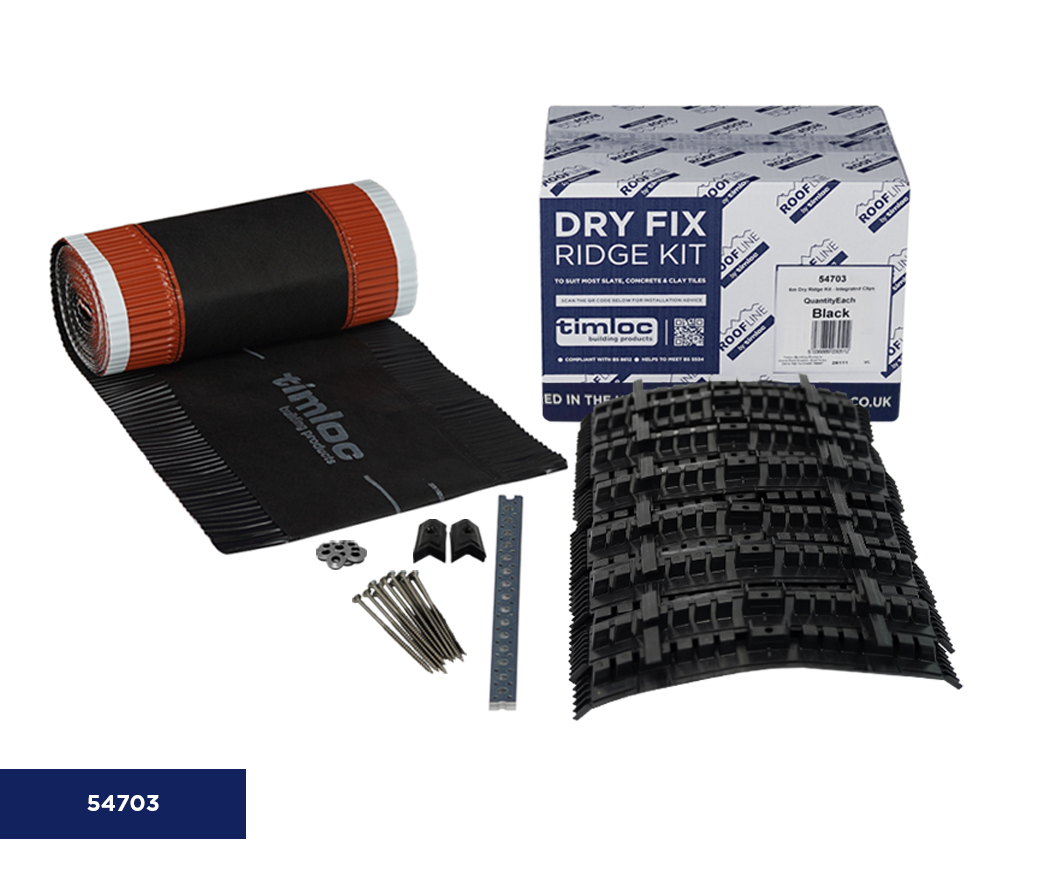

6m integrated dry fix ridge kitBlack54703

  • Fixing screws, washers and clamping plates
  • Ridge union with integrated clips compatible with ridge tiles up to 18mm thickness
  • Universal ridge batten strap for ease and flexibility
  • Long lasting, reliable and virtually maintenance free
  • Protects against wind uplift, water ingress and general deterioration
  • Provides 5000mm²/m (5mm continuous) ridge ventilation
  • Easy, fast, clean and generally safer mortar free installation
  • Can be installed in virtually all wet and cold weather conditions
  • Water resistant yet air permeable membrane roll
  • Strong, malleable and corrosion resistant aluminium flashing secured to roll
  • 55mm wide ridge union provides additional water bar protection
  • Assurance of stainless steel clamping plates
  • Maintains consistently smart appearance
  • Not impacted by building settlement
  • Helps prevent entry of large insects, birds and vermin into the roofline
  • Helping to meet:
    • BS 5534 Code of practice for slating and tiling
    • BS 5250 Code of practice for control of condensation in buildings
  • Complies with all other relevant regulations and standards
  • Independently tested and complies with BS 8612
  • Ridge unions manufactured from UV protected and colour fast polypropylene
  • Water resistant and ventilated roll membrane with attached self-adhesive and black aluminium flashing
  • Galvanised steel ridge batten straps
  • Stainless steel screws and clamping plates
  • Available in black only

3m integrated ridge kit contents:6m integrated ridge kit contents:
1 x 3m vent roll with self-adhesive flashing1 x 6m vent roll with self-adhesive flashing
7 x fixing screws, washers and clamping plates13 x fixing screws, washers and clamping plates
7 x ridge unions with integrated clips13 x ridge unions with integrated clips
5 x ridge batten straps10 x ridge batten straps

  • Order 1 pack per roof ridge length of 3 or 6m
  • Sequential packs can be installed together
  • Please allow for a minimum roll overlap of at least 150mm
