6m | 10m Roll Out Dry Fix Ridge Kits

Convenient one-pack mechanical fix solution for roof ridge installations. Designed for use with most types of slate, concrete or clay roof ridge tiles. Suitable for use on new build and existing roof applications.

Faster, cleaner, and generally safer alternative to traditional mortar installation methods.

Helps to meet BS5534 code of practice for slating and tiling and BS5250 code of practice for control of condensation in buildings.

Use:

  • Most types of slate, concrete or clay roof tiles
  • Round or angled ridge tiles
  • Most pitched roof types from 15-55°
  • New build and retro-fit projects

Add this product to your specification on NBS or SpecifiedBy

Add To NBS Spec How To Order Full Datasheet

BIM Objects

We have partnered with the BIMstore to help provide you with the highest standard of BIM content around.

Browse BIM Information

Product Information

Roofline 6m roll out dry fix ridge kit

DescriptionColourProduct Code
6m roll out dry fix ridge kitBlack54700

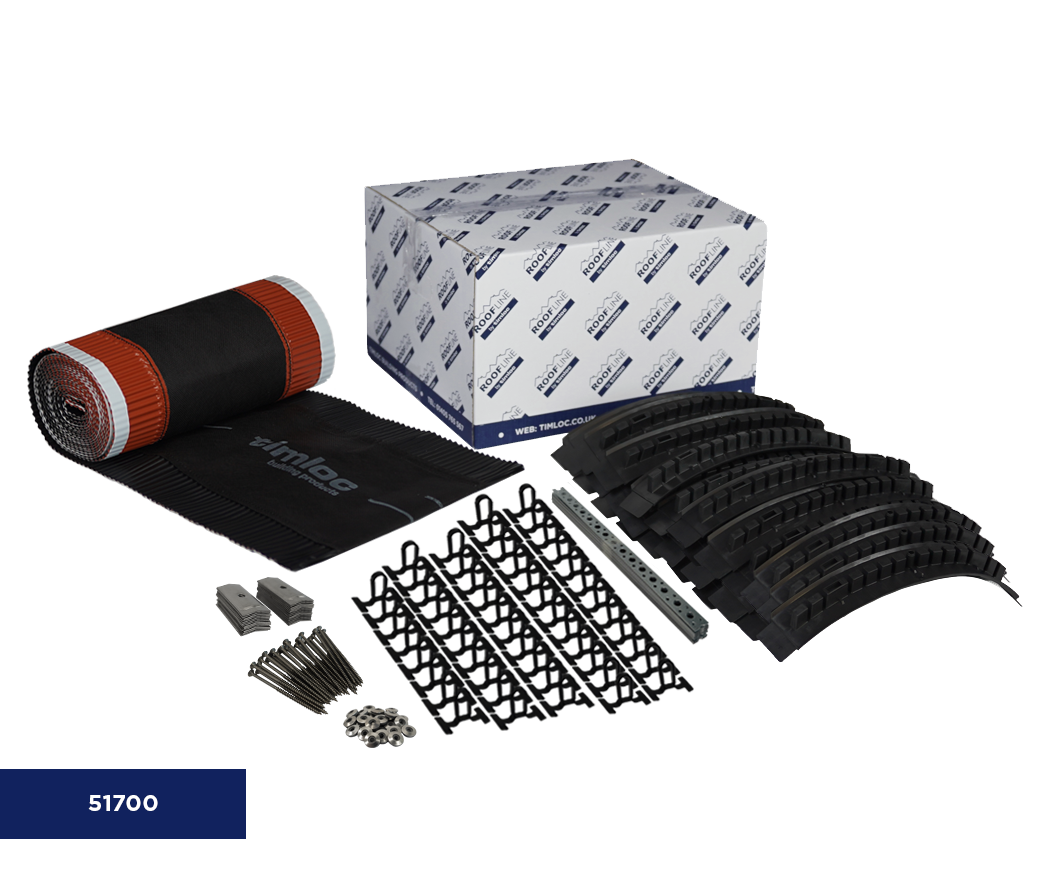

10m roll out dry fix ridge kitBlack51700
13x ridge unions & 26x ridge clipsBlack54618
13x fixing screws & clamping platesN/A54626

Related Products

Ambi-Verge universal dry fix verge system for profiled roof tiles

More Details

Dry fix verge system for profiled roof tiles – Handed

More Details

3m | 6m Integrated Dry Fix Ridge Kits

More Details
  • Preassembled fixing screws and clamping plates
  • Ridge union with adjustable clip positions for ridge tile thickness
  • Universal ridge batten strap for ease and flexibility
  • Long lasting, reliable, and virtually maintenance free
  • Protects against wind uplift, water ingress and general deterioration
  • Provides 5000mm²/m (5mm continuous) ridge ventilation
  • Easy, fast, clean and generally safer mortar free installation
  • Can be installed in virtually all wet and cold weather conditions
  • Water resistant yet air permeable membrane roll
  • Strong, malleable and corrosion resistant aluminium flashing secured to roll
  • 55mm wide ridge union width provides additional water bar protection
  • Assurance of stainless steel clamping plates
  • Maintains consistently smart appearance
  • Not impacted by building settlement
  • Helps prevent entry of large insects, birds, and vermin into the roofline
  • Helping to meet:
    • BS 5534 Code of practice for slating and tiling
    • BS 5250 Code of practice for control of condensation in buildings
  • Complies with all other relevant regulations and standards
  • Independently tested and complies with BS 8612
  • Ridge unions and clips manufactured from UV protected and colour fast polypropylene. Water resistant and ventilated roll membrane with attached self-adhesive and coloured aluminium flashing. Galvanised steel ridge batten straps. Stainless steel screws and clamping plates.
  • Available in black or brown. All kits are supplied with black ridge unions and clips.
  • 1 x 6m vent roll membrane with self-adhesive flashing
  • 13 x fixing screws and clamping plates
  • 13 x ridge unions
  • 26 x ridge union clips
  • 10 x ridge batten straps



  • 1 x 10m vent roll membrane with self-adhesive flashing
  • 26 x fixing screws, washers and clamping plates
  • 26 x ridge unions
  • 52 x ridge union clips
  • 20 x ridge batten straps
  • Order 1 pack for roof ridge lengths up to 6m or 10m. Sequential packs can be installed.
  • Please allow for a minimum roll membrane overlap of at least 150mm.
