Introducing the BRAND-NEW Lap Vent from Timloc.

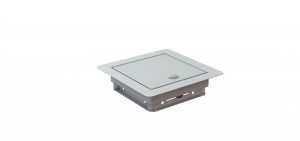

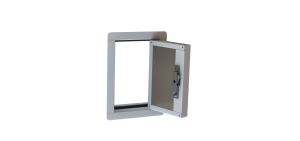

Easy-to-install hinged drop-down loft access door designed to provide easy through-ceiling access into the loft space, for use where fire protection is required. Fire-rated loft doors provide up to 60 minutes fire protection and come fully assembled and ready to fit straight out of the box. Twist operated catch to release a downward opening hinged door. Insulation U-value performances of 0.82 W/m2K and 0.35 W/m2K available.
Loft door sizes:
Z8004 – (previously 1160) – 542 x 745mm (frame fitting size)
Z8003 – (previously 1161) – 542 x 630mm (frame fitting size)
Other sizes available here. Loft door operating pole also available.
|Description||Frame fitting size||Clear opening size||Insulation U-value||Product Code|
|1 hour fire rated hinged loft door||542 x 745mm||520 x 695mm||0.82 W/m2k||Z8004|
|1 hour fire rated hinged loft door with key lock||542 x 745mm||520 x 695mm||0.82 W/m2k||ZKL8004|
|1 hour fire rated hinged loft door||542 x 745mm||520 x 695mm||0.35 W/m2k||Z9004|
|1 hour fire rated hinged loft door with key lock||542 x 745mm||520 x 695mm||0.35 W/m2k||ZKL9004|
|1 hour fire rated hinged loft door||542 x 630mm||520 x 580mm||0.82 W/m2k||Z8003|
|1 hour fire rated hinged loft door with key lock||542 x 630mm||520 x 580mm||0.82 W/m2k||ZKL8003|
|1 hour fire rated hinged loft door||542 x 630mm||520 x 580mm||0.35 W/m2k||Z9003|
|1 hour fire rated hinged loft door with key lock||542 x 630mm||520 x 580mm||0.35 W/m2k||ZKL9003|
Clause 630^ | HATCHES
Timloc loft access doors contain glass wool insulation with a Thermal Conductivity of 0.037W/mK. For this reason, a correction U value of 0.004W/m2k should be calculated to the proposed U value figures for a ceiling (U value for a ceiling, not to exceed 0.16W/m2k).
With reference to insulation, the products in this range do not use, contain or produce CFC’s, ie. HCFC’s & HFA’s. The mineral wool insulation relies on entrapped air for its thermal properties; air is not a VOC and it does not have Global Warming Potential (GWP) or Ozone Depletion Potential (ODP).
