External Cowls

Face-fixed to provide an external cowl over an airbrick to help reduce draughts caused by wind blasts.

Use:

To provide an external cowl over the airbrick to help reduce draughts caused by wind blasts

Product Information

External Cowls

DescriptionColourFixing hole dimensionsOverall dimensionEquivalent AreaProduct Code
9 x 3 external cowlTerracotta237mm x 78mm255mm x 96mm8700mm²ABC93TE

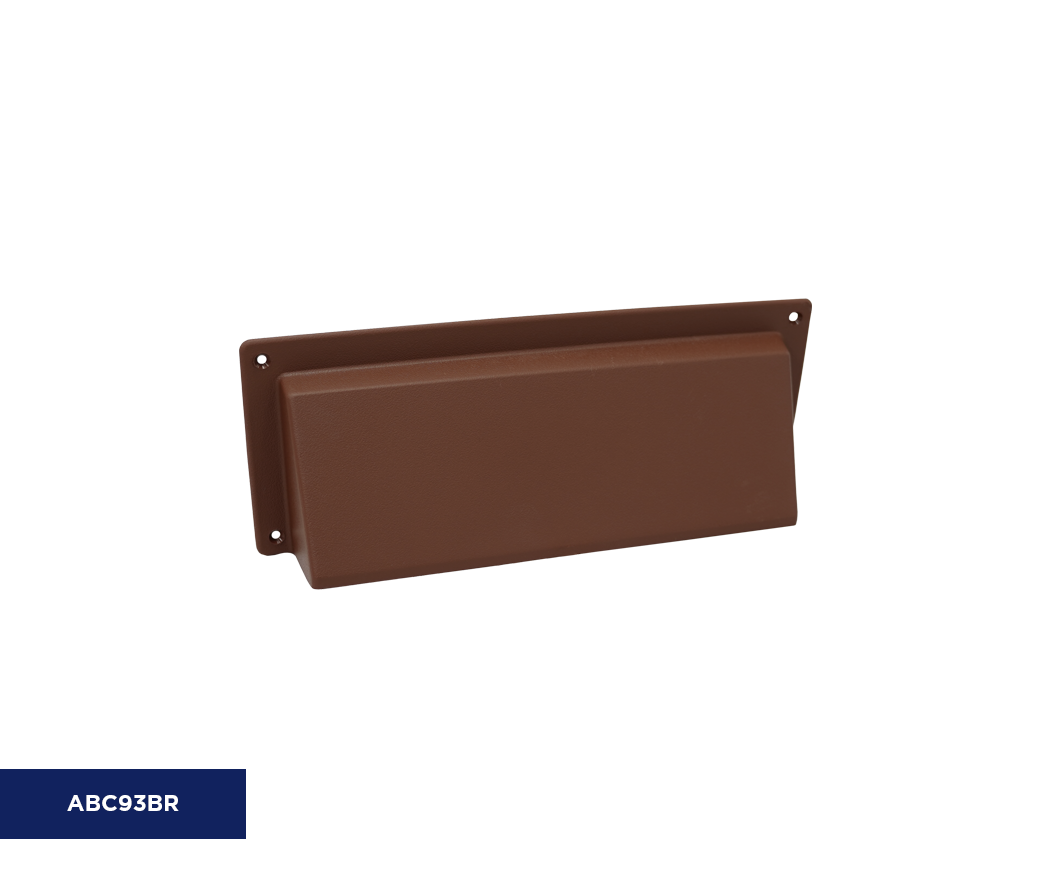

9 x 3 external cowlBrown237mm x 78mm255mm x 96mm8700mm²ABC93BR

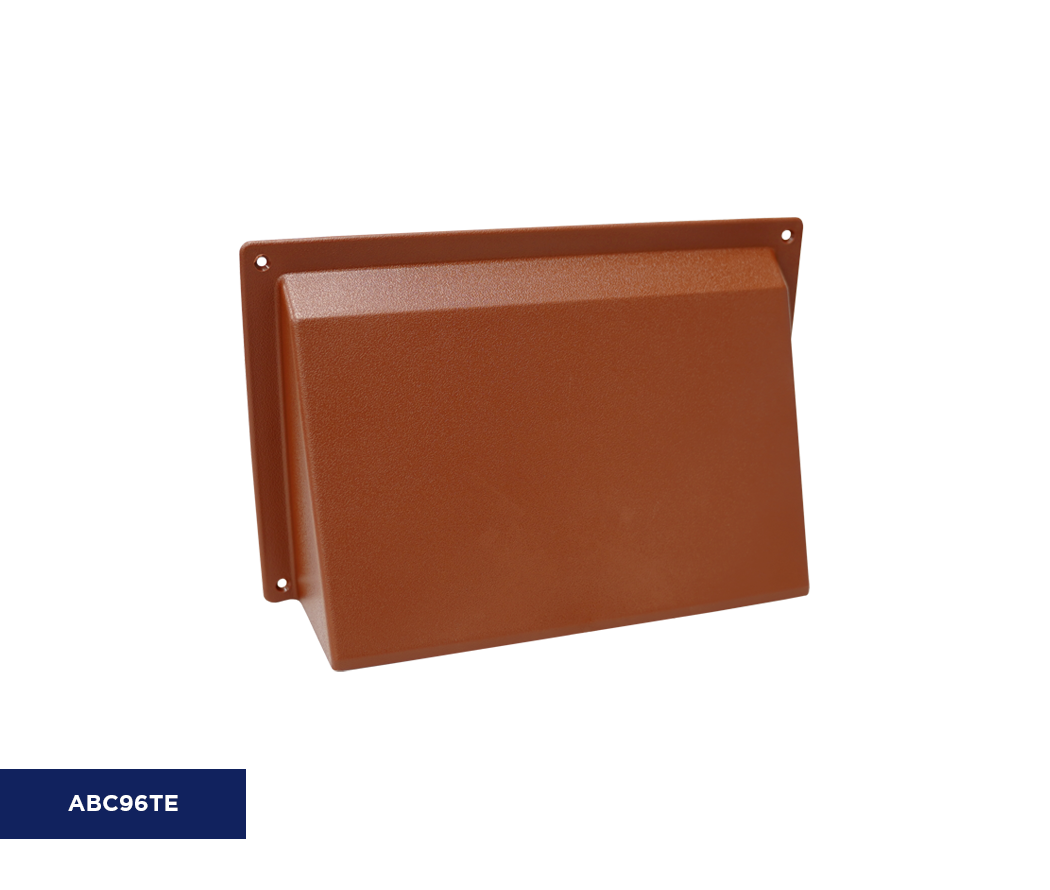

9 x 6 external cowlTerracotta237mm x 136mm255mm x 154mm16000mm²ABC96TE

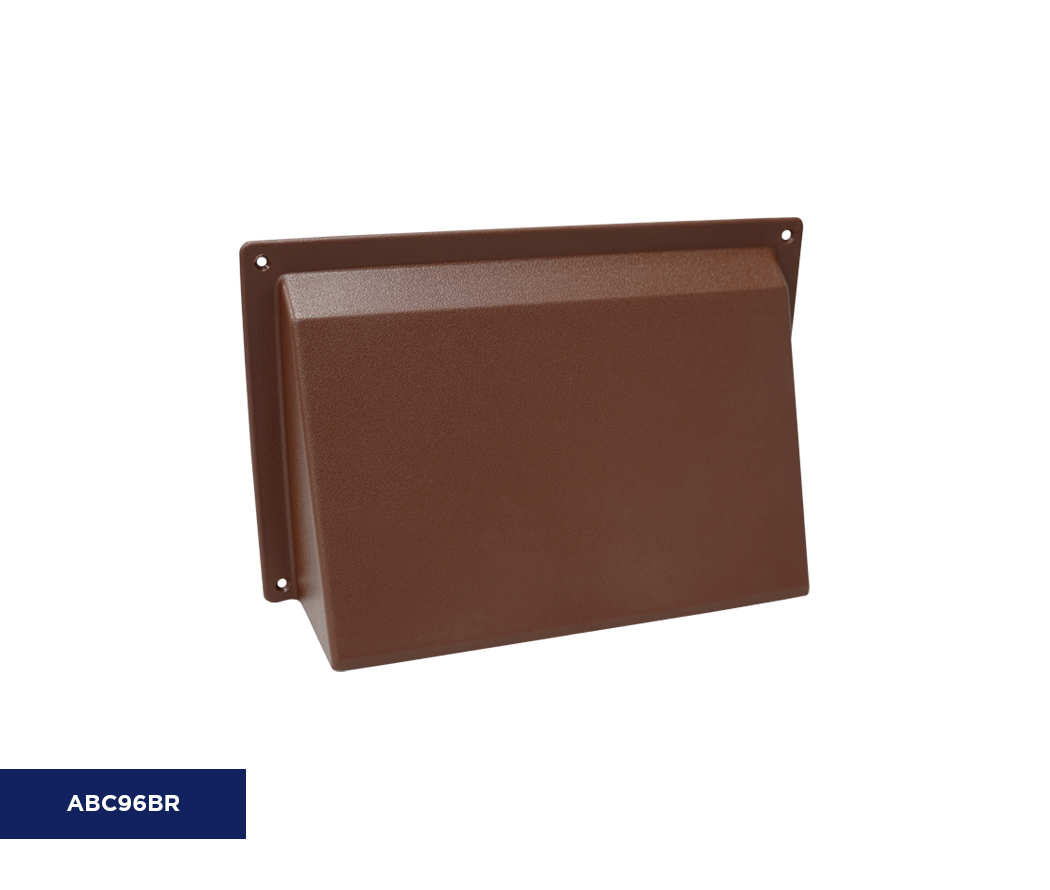

9 x 6 external cowlBrown237mm x 136mm255mm x 154mm16000mm²ABC96BR

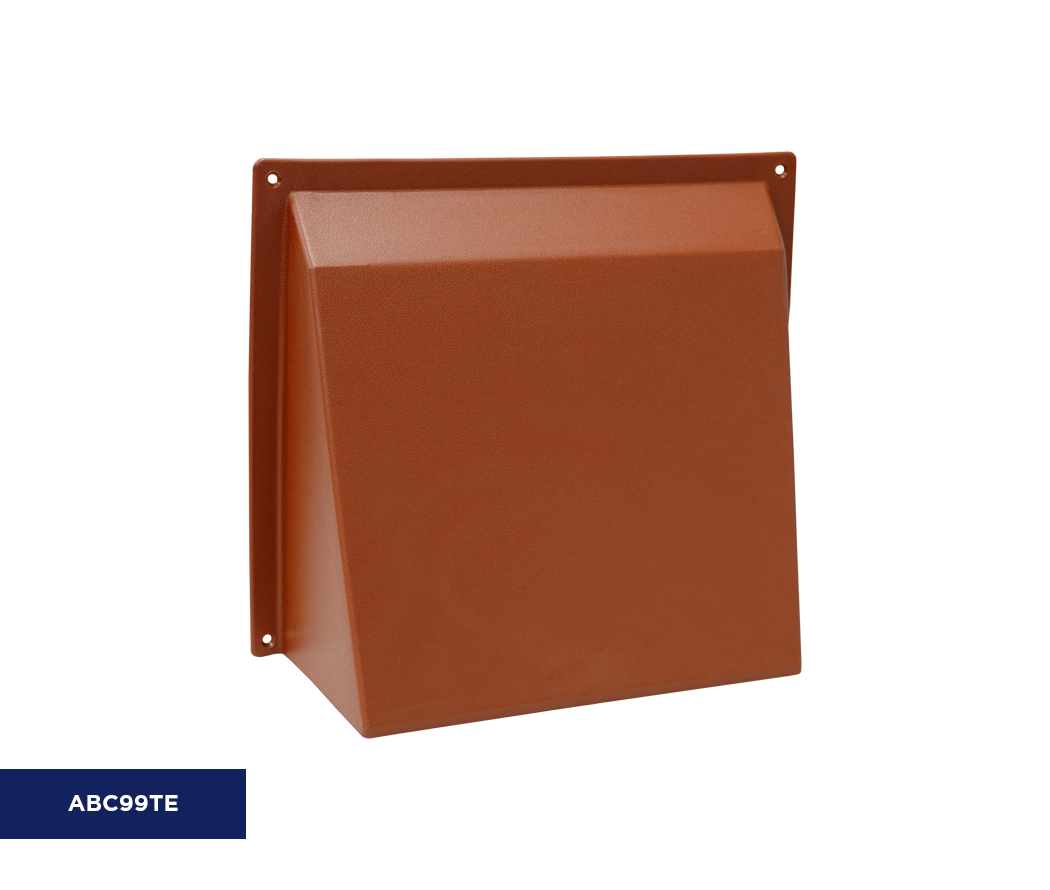

9 x 9 external cowlTerracotta256mm x 217mm274mm x 235mm23900mm²ABC99TE

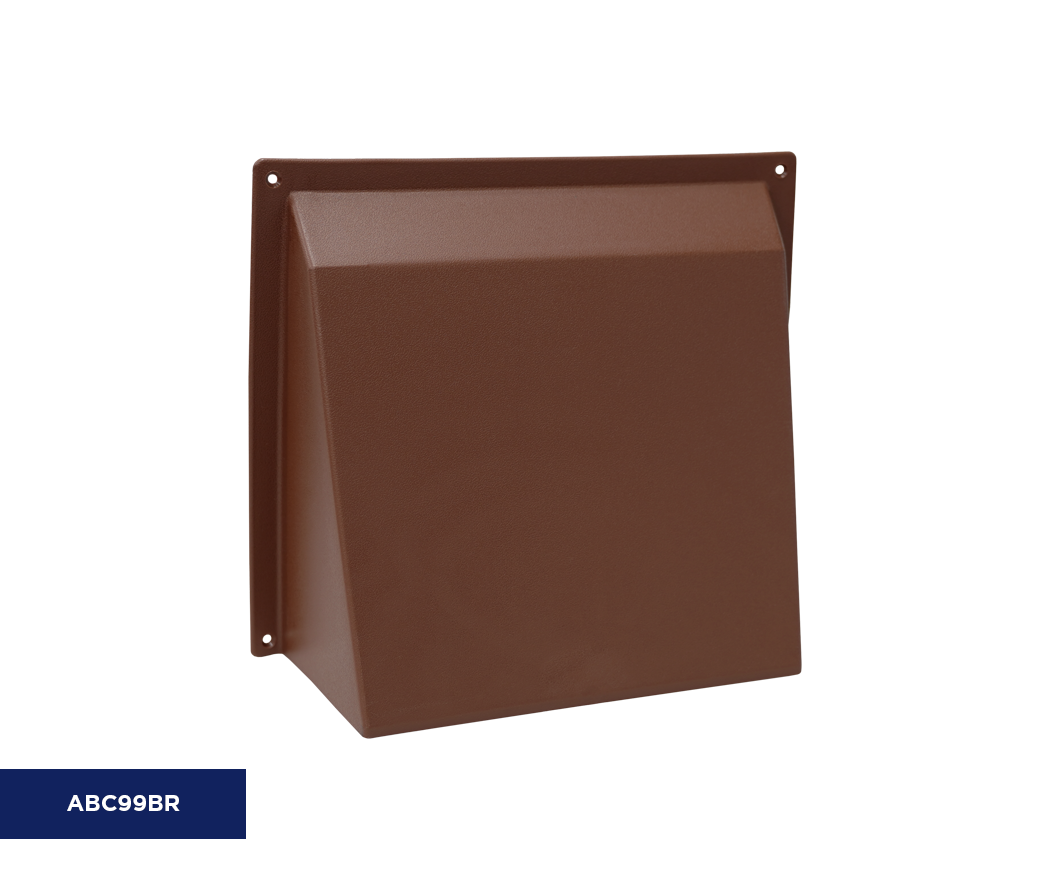

9 x 9 external cowlBrown256mm x 217mm274mm x 235mm23900mm²ABC99BR

  • Aesthetically pleasing
  • Simple screw fixing
  • Excellent airflow properties
  • Durable and totally resistant to decay
  • Satisfies all NHBC requirements
  • Manufactured to BS EN ISO 9001 and BS EN ISO 14001
  • Complies with all relevant Building Regulations
  • Meets all relevant British Standards
  • Manufactured by injection moulding in polypropylene.
  • Cowls are available in white, brown, and terracotta.
  • Internal grilles should be positioned over the internal opening of the cavity sleeve and fixed to the wall using screws and wall plugs.
  • External cowls are positioned over the face of the airbrick and fixed to the wall using screws and wall plugs. The opening of the cowl should face down towards the ground.
  • Never block or restrict the flow of air through these ventilators. The louvre grilles have no insect screen fitted – in order to comply with British Gas requirements.
  • Use open louvre grilles when ventilating a gas or heat producing appliance – never use hit & miss grilles in such situations.
  • State the cowl size and whether louvre, flyscreen, or hit & miss grilles are required.

F30 Accessories/sundry items for brick/block/stone walling

Clause 171 VENTILATION DUCTS

  • To BS493, Class 1, built in as the work proceeds
  • Manufacturer: Timloc Building Products, Timloc House, Ozone Park, Howden, East Yorkshire, DN14 7SD. T: 01405 765567 W: www.timloc.co.uk
  • Reference: ABC Cowl Range
  • Use: To provide an external cowl over the airbrick to help reduce draughts caused by wind blasts
