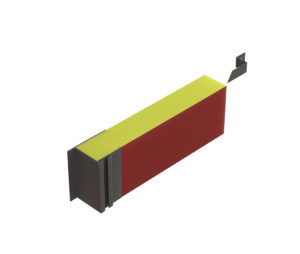

Thermo-loc FR60 60 Minute Fire-Rated Cavity Closer

60-minute fire-rated cavity closer for eliminating damp and cold bridging around doors, windows, and sills.

Independently tested by Warrington Fire to achieve 60 minutes fire-rating and minimum 15 minutes insulation.

Suitable for cavities up to 150mm. Available in single profile for 50mm-100mm cavities and double profile for 105mm-150mm cavities. Cavity barriers for fully rebated / check reveal also available.

Compliant with Building Regulation Approved Documents C, B, L1 and L2 and satisfies BRE document ‘Thermal Insulation: avoiding risks’.

Fixing ties available in packs of 100.

Uses:

  • To close the cavity at external doors, window jambs and sills
  • To provide thermal insulation and prevent ‘cold bridging’
  • To provide a DPC at external doors, window jambs or sills
  • 60 minutes fire rating and minimum 15 minutes insulation
  • Suitable for cavities up to 150mm
  • Suitable for timber and masonry walls

Product Information

Thermo-loc FR60 60 Minute Fire-Rated Cavity Closer

Product CodeDescriptionCavity WidthLengthPack Quantity
FR60/50Thermo-loc FR6050mm2.4m5
FR60/65Thermo-loc FR6065mm2.4m5
FR60/75Thermo-loc FR6075mm2.4m5
FR60/90Thermo-loc FR6090mm2.4m5
FR60/100Thermo-loc FR60100mm2.4m5
FR60/125Thermo-loc FR60125mm2.4m5
FR60/150Thermo-loc FR60150mm2.4m5
FR60/CR50Thermo-loc FR6050mm2.4m5
FR60/CR65Thermo-loc FR6065mm2.4m5
FR60/CR75Thermo-loc FR6075mm2.4m5
FR60/CR90Thermo-loc FR6090mm2.4m5
FR60/CR100Thermo-loc FR60100mm2.4m5
FR60/CR125Thermo-loc FR60125mm2.4m5
FR60/CR150Fixing ties - 100 pack150mm2.4m5
CCFIXThermo-loc FR30--100

  • Provides an effective DPC and thermal barrier between frame, inner and outer wall leaf
  • Thermal conductivity of 0.036W/mK
  • Exceeds the minimum thermal resistance path of 0.45m2K/W stipulated in ‘Part L’ accredited construction details
  • Rigid profile extrusion allows both first and second fix
  • Suitable for all frame and sill positions
  • Durable and resistant to decay
  • Insulation option to suit your requirements both thermal and fire rated
  • Global warming potential of zero
  • Ozone depletion potential of zero

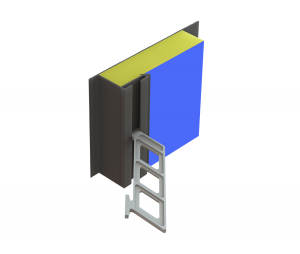

  • Available fully rebated – Check reveal (single flange)
  • Independently tested by Warrington Fire
  • LABC Registered Detail
  • Satisfies NHBC Standards
  • Manufactured to BS EN ISO 9001 and BS EN ISO 14001
  • Complies with Building Regulation Approved Documents C, B, L1 & L2
  • Complies with ‘Part L’ accredited construction details
  • Complies with the Scottish Building Standards ‘Technical handbook’
  • Satisfies BRE document ‘Thermal insulation: avoiding risks’
  • Meets all relevant British Standards
  • Rigid profile extruded in white UPVC. Supplied in 2.4 metre lengths.
  • Standard cavity options available 50mm – 150mm.
  • Rockfibre mineral wool (FR) insulation 0.036W/mk.
  • Can be used in both first and second fix applications.
  • Cut the cavity closer into required lengths allowing the jamb section to overlap the sill section and to butt the underside of the lintel.
  • In first fix application the cavity barrier should be nailed to the jamb or sill of the door or window frame and the whole assembly built in as work proceeds. Alternatively, the barrier can be built in sections using fixing ties as work proceeds.
  • For second fix applications, the cavity barrier is pushed into the open cavity after building work is complete. The compressible nature of the exposed insulation material is used to create a friction fit in the cavity; secure nail fixing is required.
  • Joining ‘off cut’ sections should not be carried out for the FR range.
  • Establish the cavity width and select the correct cavity barrier width, or the next size up to ensure the cavity can be closed.
  • In jamb and sill applications, first estimate the total length of cavity barrier required, then order the correct number of individual 2.4 metre lengths so limiting joint pieces.
  • Fixing ties are available for secure fixing if required (particular attention around door openings). Allow for ties fitted at 450mm centres.

F30 Accessories/sundry items for brick/block/stone walling

Clause 180 | CAVITY CLOSURES FOR CLOSING AROUND WINDOW & DOOR OPENINGS

  • To extend not less than 150mm beyond ends of lintels or bridgings.
  • Manufacturer: Timloc Building Products, Timloc House, Ozone Park, Howden, East Yorks. DN14 7SD. T: 01405 765 567, W: www.timloc.co.uk
  • Reference: eg. FR60/50 (Thermo-loc FR60, 2.4m, 50mm cavity)
  • Accessories: Fixing ties available, 6 No. per 2.4m cavity barrier

BRE Document ‘Thermal insulation: avoiding risks’ and Robust Details stipulate: “When a window or door frame is set back behind the inner face of a dense outer masonry leaf, it should overlap an insulated closer by a minimum of 30mm for BRE exposure zones Sheltered to Severe; but fully rebated check reveals for zones Very Severe.

With reference to insulation, the products in this range do not use, contain or produce Urea Formaldehyde, CFCs or indeed any of the so-called soft CFCs, i.e. HCFCs & HFAs. They conform to the Montreal Protocol and have an ozone depletion potential of zero and global warming potential of zero.
