Rad-Seal 15

The Rad-Seal 15 is the face-fixed radiator pipe guide and seal designed to provide an air leakage barrier around the point of entry for through wall 15mm plastic radiator pipework. Patent-pending design.

The straight-forward and quick face-fix installation securely positions the pipework into the required direction for connection.

Rad-Seal 15 helps to meet Building Regulation Part L – Conservation of Fuel and Power.

Uses:

  • At the point of entry of through-wall 15mm plastic radiator pipework
  • Within all wall constructions that present a concealed pipe void including:
    • Studded dry lined walls
    • Plaster dab slab walls

Add this product to your specification on NBS

Add To NBS Spec How To Order Full Datasheet

BIM Objects

We have partnered with the BIMstore to help provide you with the highest standard of BIM content around.

Browse BIM Information

Product Information

Rad-Seal 15

DesciptionHeightWidthBox QuantityProduct Code
Rad-Seal 15140mm126mm202222

Related Products

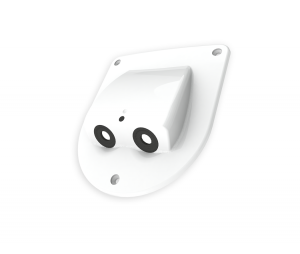

Rad-Seal Face-Fix

More Details

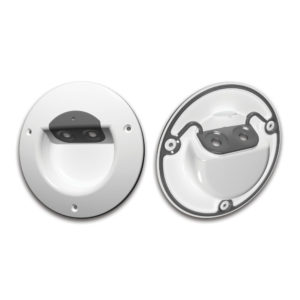

Rad-Seal Recessed

More Details
  • Contributes to Part L’s required air leakage performance
  • Protects the pipework and plaster from direct chafing
  • Straight-forward and quick face fix installation
  • Projects by just 23.5mm from the wall
  • Securely positions the pipework into the required direction for connection
  • Eliminates pipework kinking
  • Patent-pending design
  • Made from 100% recycled materials
  • Manufactured to BS EN ISO 9001 and BS EN ISO 14001
  • Helps to meet:
    • Building Regulation Document Part L – Conservation of Fuel and Power
  • Main unit body – white recycled Polypropylene.
  • Gasket seal entry and seals – recycled Thermoplastic Elastomer.

Accepts routed pipwork from:

  • Ground floor routing
  • Horizontal routing
  • Upper floor routing
