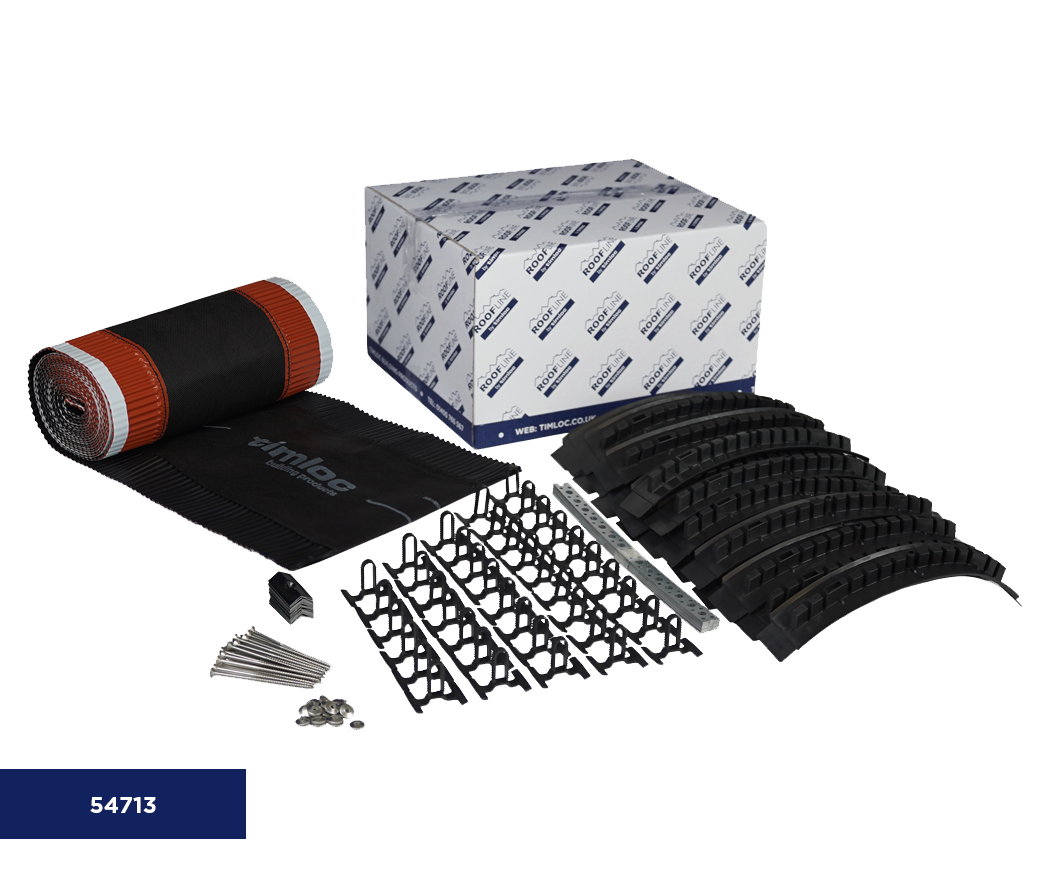

6m Roll Out Dry Fix Clay Ridge Kit

Convenient ‘one pack’ mechanical fix solution for roof ridge installations.

Uses:

  • Most types of slate, concrete or clay roof tiles
  • Round or angled ridge tiles
  • Most pitched roof types from 15-55°
  • New build and retro-fit projects
How To Order Full Datasheet

BIM Objects

We have partnered with the BIMstore to help provide you with the highest standard of BIM content around.

Browse BIM Information

Product Information

Product Codes

Product DescriptionColourProduct Code
6m roll out dry fix clay ridge kitBlack54713
20x ridge unions & 40x ridge clipsBlack54715
20x fixing screws & clamping platesSilver54716

  • Preassembled fixing screws and clamping plates
  • Ridge union with adjustable clip positions to suit a range of clay ridge tile thicknesses (30mm max)
  • Universal ridge batten strap for ease and flexibility
  • Long lasting, reliable and virtually maintenance free
  • Protects against wind uplift, water ingress and general deterioration
  • Provides 5000mm²/m (5mm continuous) ridge ventilation
  • Easy, fast, clean and generally safer mortar free installation
  • Can be installed in virtually all wet and cold weather conditions
  • Water resistant yet air permeable membrane roll
  • Strong, malleable and corrosion resistant aluminium flashing secured to roll
  • 55mm wide ridge union width provides additional water bar protection
  • Assurance of stainless steel clamping plates
  • Maintains consistently smart appearance
  • Not impacted by building settlement
  • Helps prevent entry of large insects, birds and vermin into the roofline
  • Helping to meet:
    • BS 5534 Code of practice for slating and tiling
    • BS 5250 Code of practice for control of condensation in buildings
  • Complies with all other relevant regulations and standards
  • Independently tested and complies with BS 8612
  • Ridge unions and clips manufactured from UV protected and colour fast polypropylene
  • Water resistant and ventilated roll membrane with attached self-adhesive and coloured aluminium flashing (colour may vary from pictured)
  • Galvanised steel ridge batten straps
  • Stainless steel screws and clamping plates
  • Available in black only
  • All kits are supplied with black ridge unions and clips
  • 1 x 6m vent roll membrane with self-adhesive flashing
  • 20 x fixing screws and clamping plates
  • 20 x ridge unions
  • 40 x ridge union clips
  • 10 x ridge batten straps
  • Order 1 pack for roof ridge lengths up to 6m
  • Order further kits to cover lengths over 6m. These can be installed sequentially
  • Please allow for a minimum roll membrane overlap of at least 150mm

Available here.
