1201 | Telescopic Underfloor Vent 3-5 Courses

Adjustable ventilator to provide ventilation beneath suspended ground floors up to 5 brick courses. With incorporated grille to prevent vermin entry.

The vertical height of the ventilator unit adjusts to suit between 3 and 5 brick courses (225mm-375mm) with a minimum cavity width of 50mm.

We have an extensive range of easy-to-fit horizontal and vertical extension accessories, that do not restrict airflow, to adapt the unit for various applications.

Use:

  • To provide ventilation below suspended ground floors.

Add the 1201 Telescopic Underfloor Vent to your specification on NBS or SpecifiedBy

BIM Objects

We have partnered with the BIMstore to help provide you with the highest standard of BIM content around.

Browse BIM Information

Product Information

Telescopic Underfloor Vent

DescriptionCoursing HeightPack QuantityProduct code
Telescopic Underfloor Ventilator3-5 courses201201

  • Telescopic and adjustable for a step of 3, 4 or 5 brick courses.
  • Suited for 50-100mm cavity width construction.
  • Horizontal and vertical extension accessories available.
  • Free area of 8000mm2 per unit when installed without 1201AB airbrick.
  • Free area of 6500mm2 per unit when installed with 1201AB airbrick.
  • Equivalent area of 6170mm2 per unit when installed with 1201AB airbrick.
  • Special grille included to prevent entry of vermin.
  • Durable, robust and totally resistant to decay.
  • Satisfies all NHBC requirements.
  • Manufactured to BS EN ISO 9001 and BS EN ISO 14001.
  • Complies with all relevant Building Regulations.
  • Meets all relevant British Standards.
  • Manufactured by injection moulding in polypropylene.
  • Available in black only in packs of 20.
  • Always use in conjunction with a 1201AB airbrick from Timloc.
  • The airbrick and upper front opening of the telescopic underfloor ventilator must be positioned above the finished external ground level – usually at the same level as the ground level DPC.
  • The lower rear opening of the product must project down to the level of the underfloor void and must not be obstructed by the floor construction. A vertical extension sleeve is available to fit with this product if the standard 5 course step is not adequate.
  • Building Regulations require a free airflow below suspended ground floors of at least 1500mm2 per metre run of wall. This can be achieved by spacing the ventilators at 4m centres, however, such a wide spacing is not recommended as stagnant air pockets could form in the underfloor void. Timloc recommend a spacing of not more than 2m centres to comply with NHBC standards.
  • The NHBC recommend that underfloor ventilators are spaced at a maximum of 2m centres, with ventilators also positioned not more than 450mm from the ends of the wall.
  • As a minimum requirement, ventilators should be positioned down two opposite sides of the building so as to create a cross flow ventilation action. It is good practice to position ventilators around the full perimeter of the building, particularly with complex building designs.
  • If the underfloor void is separated by dividing walls, openings must be provided to allow a free flow of air around the underfloor void.
  • The standard ventilator will fit into a cavity wall with an external leaf of 100-102.5mm, a minimum cavity width of 50mm and a cross cavity of 100mm. External and internal horizontal extension sleeves are available to accommodate thicker walls or wider cavities.
  • To be installed with a DPC Cavity tray and wall weeps to collect any water ingress. We recommend Timloc’s IL4 and 2 weeps (Invisiweep or 1143 Cavity Wall Weep Vent).
  • When incorporating with a gas barrier system and adjusted to the required height, the joining sections should be sealed with proprietary tape.
  • It may be a requirement to protect with a lintel for direct loads.
  • Measure the length of each wall requiring telescopic underfloor ventilators and divide by 2m to establish the quantity required.
  • Always round up if the calculation does not work out to an exact whole number.
  • To be installed with a DPC cavity tray and wall weeps to collect any water ingress. We recommend Timloc’s IL4 and 2 weeps (Invisiweep or 1143 Cavity Wall Weep Vent).

F30 Accessories/sundry items for brick/block/stone walling

Clause 160 | AIR BRICK

  • To BS493, Class 1, built in as the work proceeds.
  • Manufacturer: Timloc Building Products, Timloc House, Ozone Park, Howden, East Yorkshire, DN14 7SD. Tel: 01405 765567, Web: www.timloc.co.uk
  • Reference: 1201 Telescopic Underfloor Ventilator
  • Design: Rectangular
  • Work size: Each unit 225/375mm coursing x 220mm
  • Material: Thermoplastic
  • Colour: Black

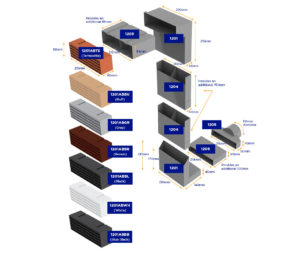

  • Optional Accessories:
    • 1203 Horizontal Front Extension (+115mm)
    • 1204 Vertical Extension Sleeve (additional 2 brick courses)
    • 1205 Duct Adaptor (suits 110mm diameter duct)
    • 1206 Horizontal Rear Extension (+100mm)
  • 1201 telescopic underfloor ventilator.
  • Airbrick and a range of accessories (available separately).
